Ana sayfa /Ürünler/Otomatik Şişirme Makinası/130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing

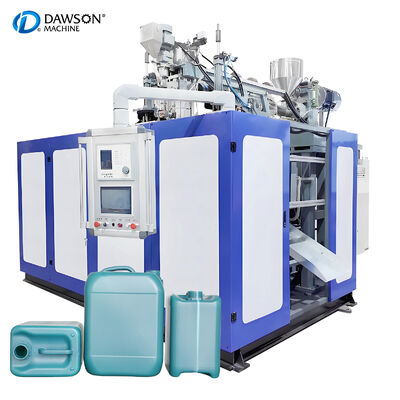

130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing

$34,200/sets 1-4 sets
fiyat
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Video çıkış denetimi: Tedarik edilen
Makine Test Raporu: Tedarik edilen
Temel Bileşenler: PLC, Motor, Rulman, Şanzıman, Dişli
Plastik işlenmiş: PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Menşei Yeri: Jiangsu, Çin
brand name: DAWSON
Gerilim: 440V/415V/380V/220V
Boyut(U*G*Y): 4,4*3,4*3,6
Kelepleme kuvveti (KN): 270
Vida çapı (mm): 90
Çıkış (kg/saat): 130
Otomasyon: otomatik
Vidalı Isıtma Bölgesi Sayısı: 4
Vidalı Isıtma Gücü(kW): 10
Ekstruder Motor Gücü(kW): 30
Kalıp Plakası Boyutu (Genişlik) (mm): 660
Kalıp Plakası Boyutu (Yükseklik) (mm): 680
Hava Basıncı (MPA): 0,8
Hava Tüketimi(m³/dak): 2.2
Kalıp Kafası Isıtma Gücü(kW): 8
Güç (kw): 67
Ağırlık (t): 11.3
Önemli Satış Noktaları: Kullanımı Kolay
Garanti: 1 Yıl
Şişirme Tipi: Ekstrüzyon şişirme makinesi
Maksimum Uygulama Boyutu: 30l
Soğutma Su Basıncı: 0,6 MPa
Su tüketimi: 100 l/dk
Kalıp Ömrü: > 1.000.000 Döngü
Kalıp malzemesi: P20, 2316, S136H, Berilyum bakırlı alüminyum.
Dil ayarları: Müşteri ihtiyacına göre çince, İngilizce ve diğer dil
emek talebi: 1~2 operatör
Satış Sonrası Hizmet Sağlanıyor: Mühendisi Müşteri Fabrikasına Gönderin
Pazarlama Türü: Sıradan Ürün
Vurgulamak:

HDPE extrusion blow molding machine

,

5L jerrycan extrusion blow molding machine

,

High Speed Extrusion Blow Molding Machine
Temel bilgiler
Ödeme & teslimat koşulları
Ürün Açıklaması
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 0
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 1
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 2
SPECIFICATIONS
UNITS
DSB90II
Station
double
Max product volume
L
10
Number of die heads
Set
1/2/3/4/6
Dry cycle
PC/H
700*2
Machine dimension (L*W*H)
M
4.4*2.2*2.7
Total weight
Ton
11
CLAMPING UNIT
Clamping force
KN
160
Platen opening stroke
mm
290-680
Platen size
mm
550*530
Max mould size (W*H)
mm
550*530
Platen moving distance
mm
620
POWER
Extrusion motor power
KW
45
Oil pump motor power
KW
18.5
Extrusion heating power
KW
16
Head heating power
KW
8-10
Total power
KW
87.5-89.5
EXTRDER UNIT
Screw diameter
mm
90
Screw L/D ratio
L/D
25
Plasticizing capacity
Kg/hour
150
Number of heating zone
Zone
4
Max die mouth diameter(single head)
mm
200


Click here to send us messages >>Send Inquiry...

130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 3
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 4
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 5
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 6
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 7
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 8
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 9
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 10
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 11
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 12
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 13
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 14
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 15
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 16
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 17
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 18

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 19
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 20
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 21
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 22
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 23

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
130 Kg Per Hour Output Extrusion Blow Molding Machine For HDPE 5L Jerrycan High Speed Plastic Manufacturing 24
